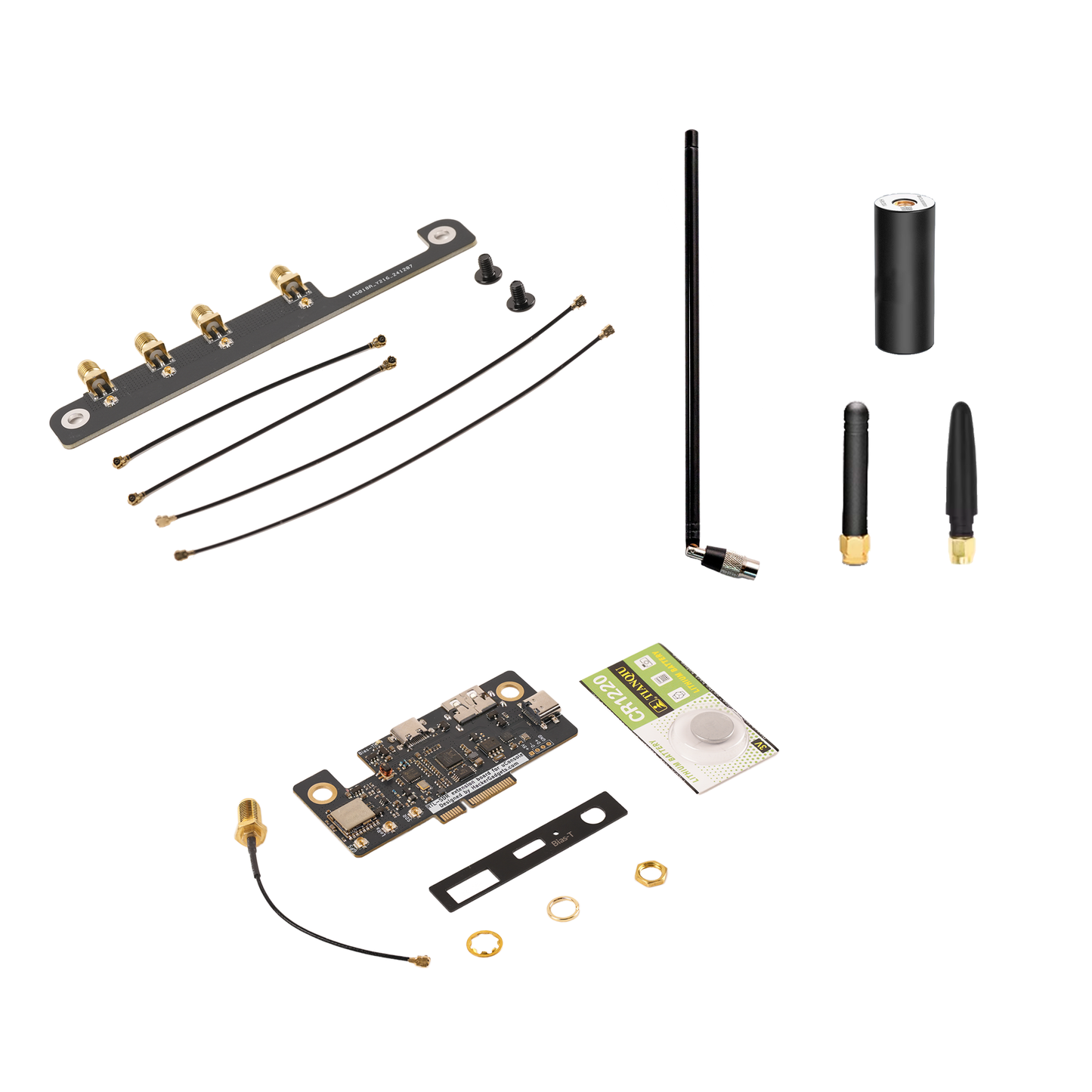

uConsole RTL-SDR/LoRa/GPS/RTC/USB Hub All-In-One Extension Board

uConsole RTL-SDR/LoRa/GPS/RTC/USB Hub All-In-One Extension Board

$78.99 USD
$78.99 USD $78.99 USD
Sale Sold out

Out of stock

Estimated Shipping Date: Usually ships out in 1 to 2 business days.
View full details

The board will be released soon; join the waiting list to be notified for the first time.

The uConsole Multi-Functional Expansion Board is a versatile and powerful add-on designed to enhance the capabilities of your uConsole device. This expansion board integrates multiple functionalities, including RTL-SDR, LoRa, GPS, RTC, and USB Hub, making it an essential tool for developers, hobbyists, and professionals alike.

Key Features:

  1. RTL-SDR:

    • Tuner: Utilizes the RTL2832U and R820T2 tuner.

    • Frequency Range: Supports a wide frequency range from 100KHz to 1.74GHz.

    • Temperature-compensated oscillator (TCXO):  Accurate tuning and almost zero temperature drift.

    • 5V bias tee: This allows the RTL-SDR to power low noise amplifiers (like the LNA4ALL, HABAMP, RTL-SDR Blog ADS-B LNA) and active antennas through the coax cable. It can be enabled in software. The status of the bias tee power can be identified by the LED on the side.

    • HF Direct Sampling Mode: Listen to 100 kHz - 28.8 MHz with direct sampling.

    • Applications: Ideal for software-defined radio (SDR) applications, including radio scanning, spectrum analysis, and signal decoding.

  2. LoRa/Meshtastic:

    • Chip: Equipped with the SX1262 chip.

    • Frequency Band: Operates in the 860～960MHz band.

    • Output Power: Maximum output power of 22dbm.

    • Applications: Support Meshtastic out-of-box. Perfect for long-range, low-power communication projects, such as IoT devices, remote sensors, and wireless networks.

  3. GPS:

    • Multi-Mode Support: Compatible with GPS, BDS, and GNSS satellite navigation systems.

    • Antenna Options: Supports both active and passive GPS antennas.

    • Applications: Enhances location tracking and navigation capabilities for various applications, including drones, vehicles, and outdoor activities.

  4. RTC (Real-Time Clock):

    • Chip: Features the PCF85063A chip.

    • Battery: A CR1220 battery is used to ensure continuous timekeeping.

    • Functionality: Provides accurate real-time clock functionality, addressing the lack of an RTC in the uConsole.

    • Applications: Essential for time-sensitive applications, such as data logging, scheduling, and time-stamping.

  5. USB Hub:

    • Ports: Includes a Type-A and Type-C port on the side.

    • Internal Connections: Features an internal Type-C port and a 2.0mm pitch pin header.

    • Applications: Expand connectivity options, allowing multiple USB devices and peripherals to be connected.

The uConsole Multi-Functional Expansion Board is a comprehensive solution that significantly extends the functionality of your uConsole. With its integrated RTL-SDR, LoRa, GPS, RTC, and USB Hub capabilities, this expansion board is perfect for various applications, from radio communication and navigation to timekeeping and device connectivity. Whether you're a developer working on a complex project or a hobbyist exploring new technologies, this expansion board is designed to meet your needs and enhance your uConsole experience.

Review video by one of the beta testers-SymBiioTE:
