Important note:
1) The uConsole, Computer module, AC1200 WiFi card, and batteries shown in the photos are not included in any variants.
2) If your address is in the remote area list of the selected courier, your order will be charged for the surcharge later.
3) This is a pre-order product. The estimated shipping date is November 30th.
The AC1200 WiFi card is not listed in the variants. Please buy it from this link.

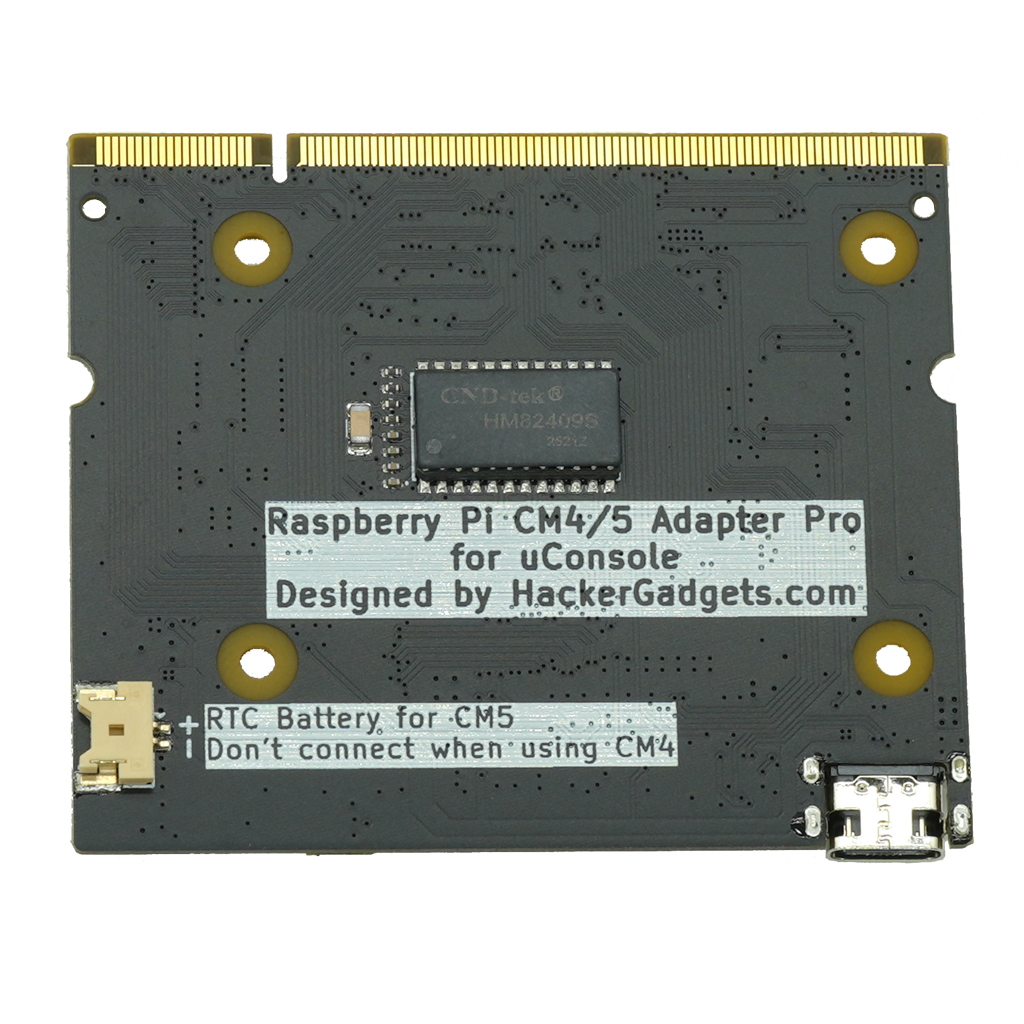

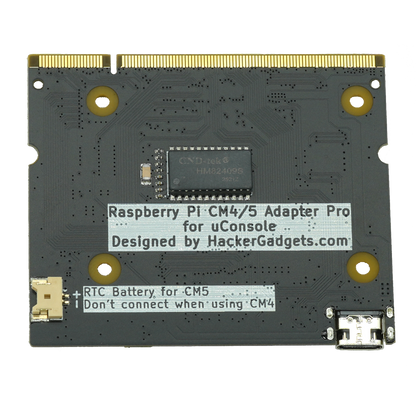

Product Description:
Features:
- PCIe Connector: expose the PCIe signals of the CM4/CM5, which can be connected to the NVMe Battery board.
- USB-C Port for flashing: Can be used to flash the EMMC version computer module.
- USB 3.0 Connector: CM5 only, which can be connected to the RJ45 Ethernet and USB 3.0 expansion board.
- PWM Fan connector: This connector is compatible with fans designed for the Raspberry Pi 5 and CM5. When used with the CM4, the fan runs at a fixed speed.
- RPITX connector: This connector was connected to GPIO4, which was used by the RPITX project to transmit radio signals(not tested yet).
- CSI2 connector: This connector follows the exact pin definition of the CSI port on the Raspberry Pi 5 and can be used to connect the camera module made for the Raspberry Pi.
- RTC battery connector: To power the RTC of the CM5, do not connect when using CM4.
- Ethernet signals: The Ethernet signals of CM4/CM5 were routed to the pins that were used for CSI in the expansion port.
There will be a Radxa CM5 version, which will resolve the HDMI output issue and expose the PCIe, Gigabit Ethernet, and USB 3.0 ports (note that only one USB 3.0 port is currently functional; the Type-C USB 3.0 port is not working).
