Important Note:
1) This is a pre-order product. The estimated shipping date is November 30th.
2) The uConsole shown in the photos is not included.
3) If your address is in the remote area list of the selected courier, your order will be charged for the surcharge later.
Product Description:

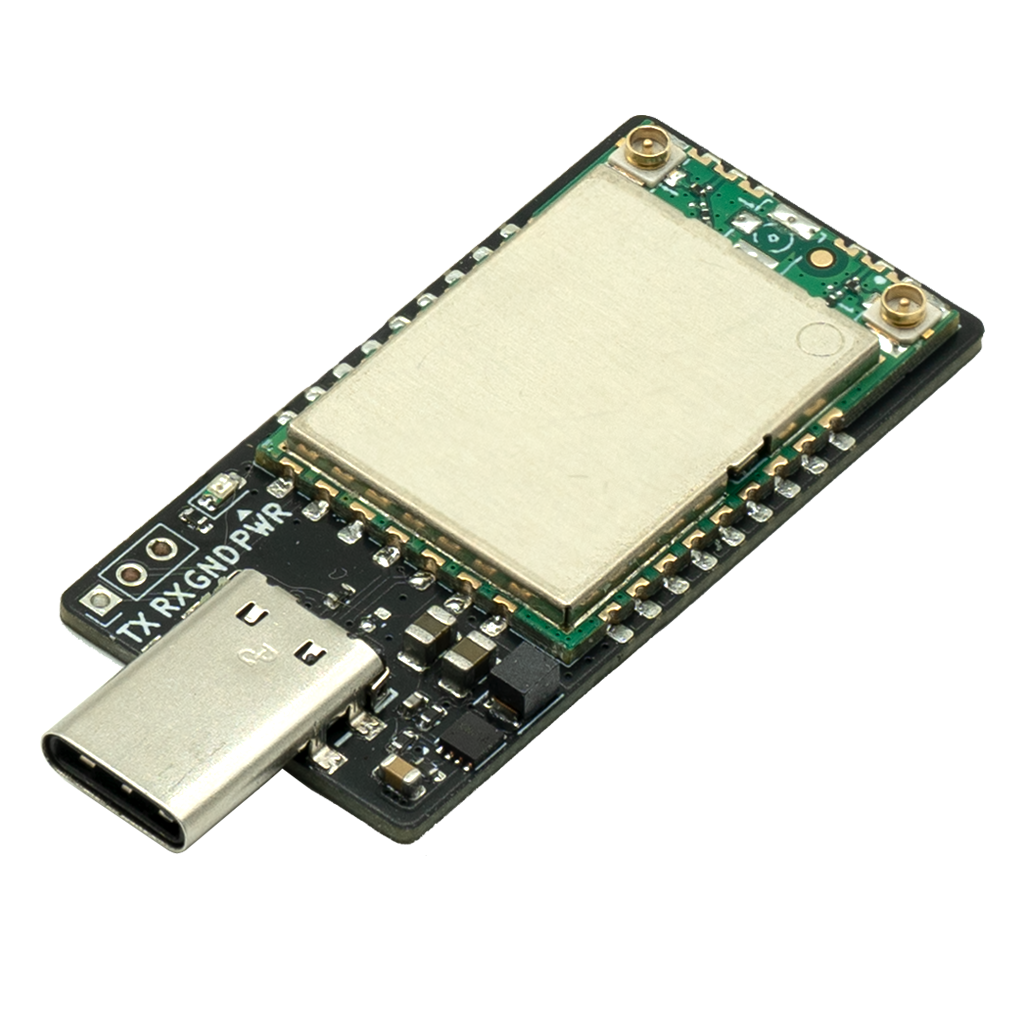

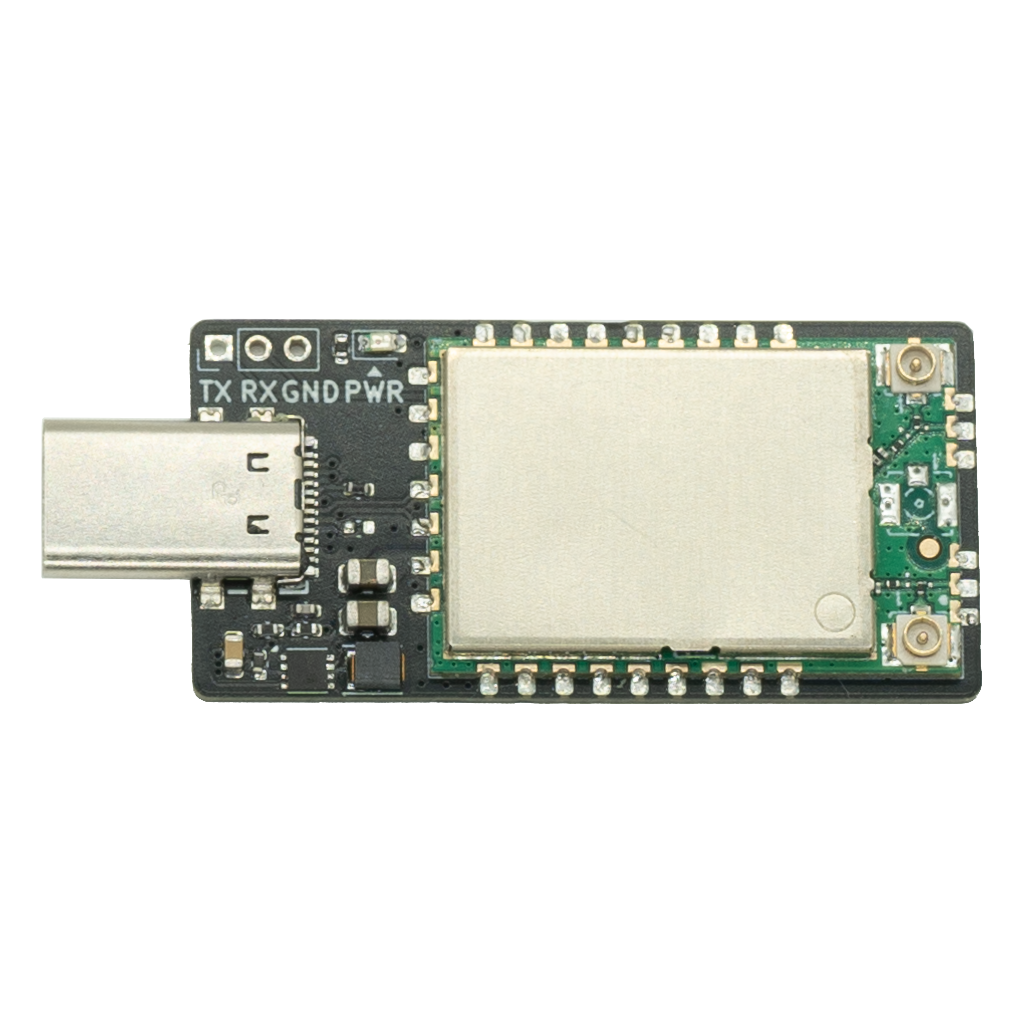

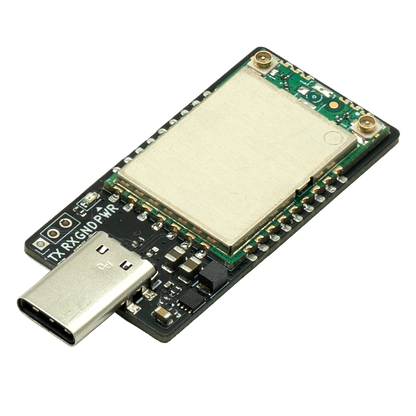

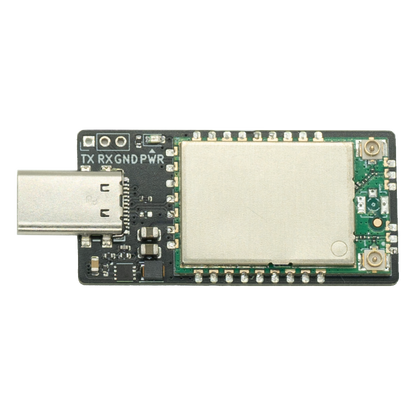

The AC1200 WiFi card is powered by the MediaTek MT7921AUN, which supports monitor mode. It can be easily installed in the uConsole with the AIO board. It supports super speeds up to 3000 Mbps (2.4 GHz 600 Mbps, 5 GHz 1200 Mbps, and 6 GHz 1200 Mbps) when used with a compatible WiFi 6E router (there are various stream models of WiFi 6E routers, 800-1200 Mbps will be a more common speed with most routers) and with 2x IPEX U.FL antenna connector allows changing the higher gain antenna to increase the connection distance. The AC1200 USB-C WiFi card also supports the latest Bluetooth v5.2, which provides higher-quality audio over Bluetooth for headphones or speakers.
Key features
- MT7921AUN WiFi 6/6E + BT 5.2 combo chip
- USB-C connector supports USB 3.2 GEN 1
- 2x IPEX U.FL external antenna connector
- Integrated BT antenna
- LED indicator for power
Specifications
|
Chipset |
MediaTek MT7921AUN |
|
IEEE 802.11 standards |
a/b/g/n/ac/ax |
|
Bluetooth |
5.2 |
|
Frequency
|
2.4 GHz 5 GHz 6 GHz |
|
Data rate
|
2.4 GHz up to 600 Mbps 5 GHz up to 1200 Mbps 6 GHz up to 1200 Mbps |
|
USB connector |
USB 3.2 Gen 1 Type-C |
|
WiFi Antenna |
2x IPEX U.FL antenna connector |
|
BT Antenna |
2x IPEX U.FL antenna connector |
|
Power consumption |
2.7 Watts (max.) |
|
Dimensions |
48 x 20 x 3.5 mm |
|
Operating temperature |
-20° C - 70° C (-4° F - 158° F) |
|
Operation voltage |
5 V |
|
OS support |
Windows 10/11 & Linux |
