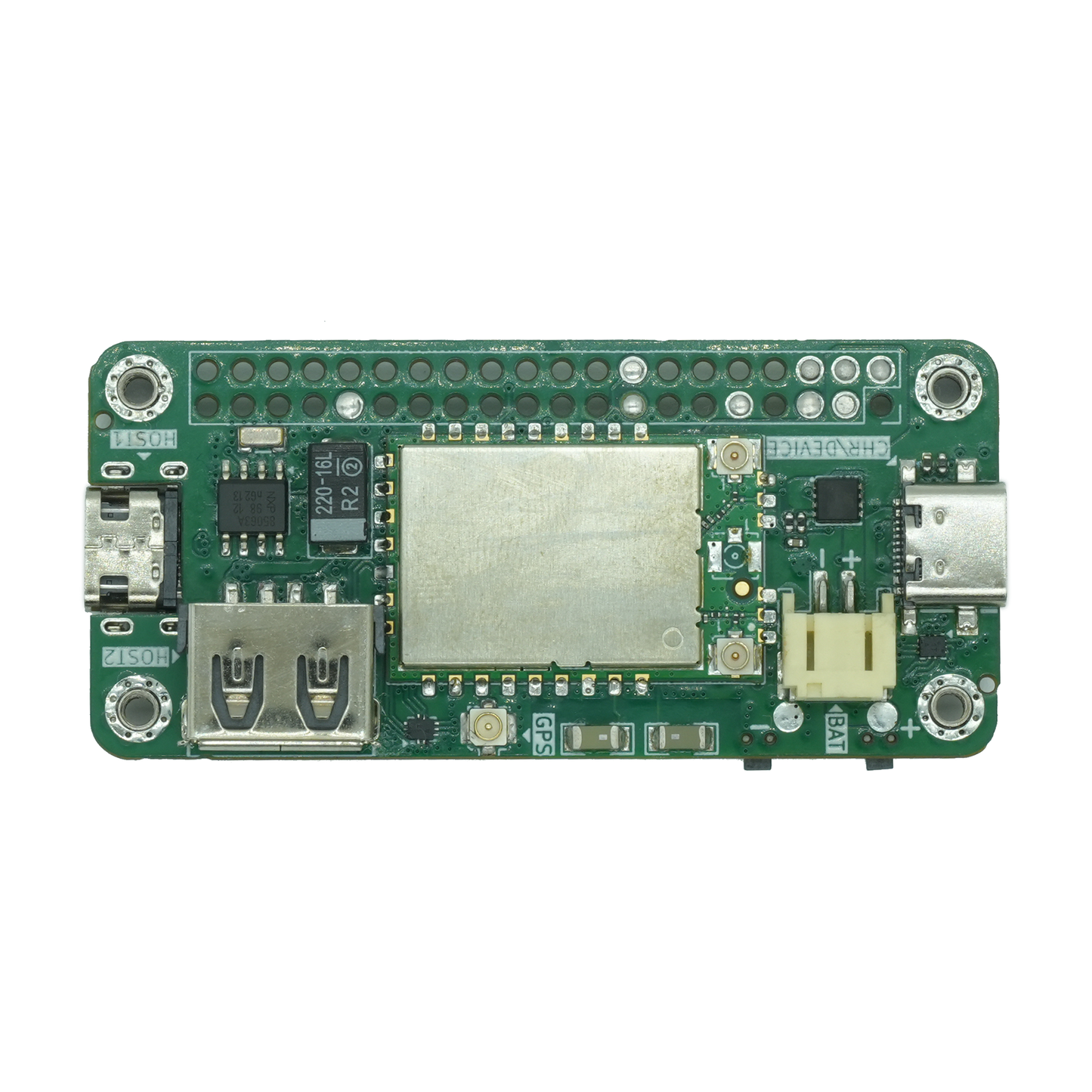

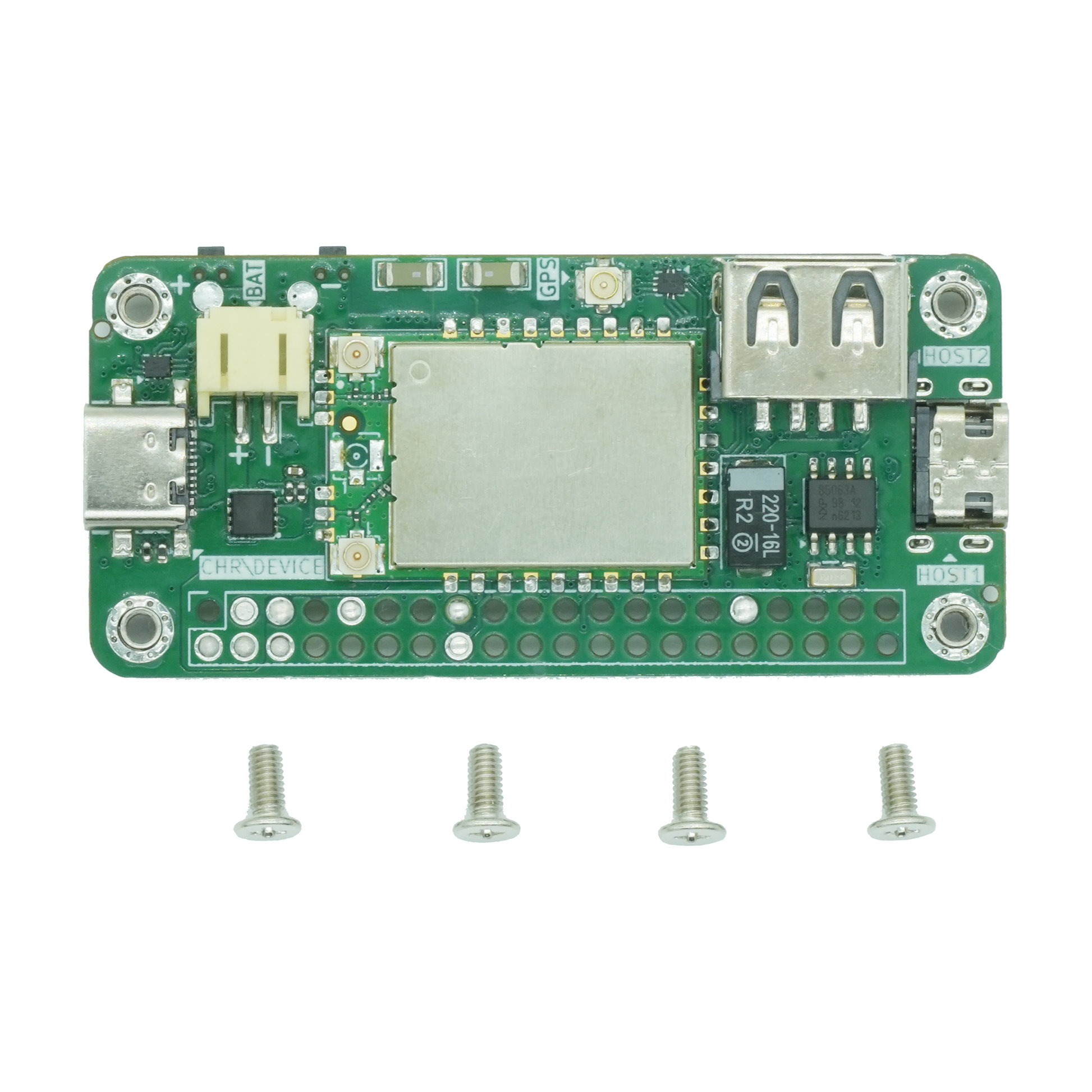

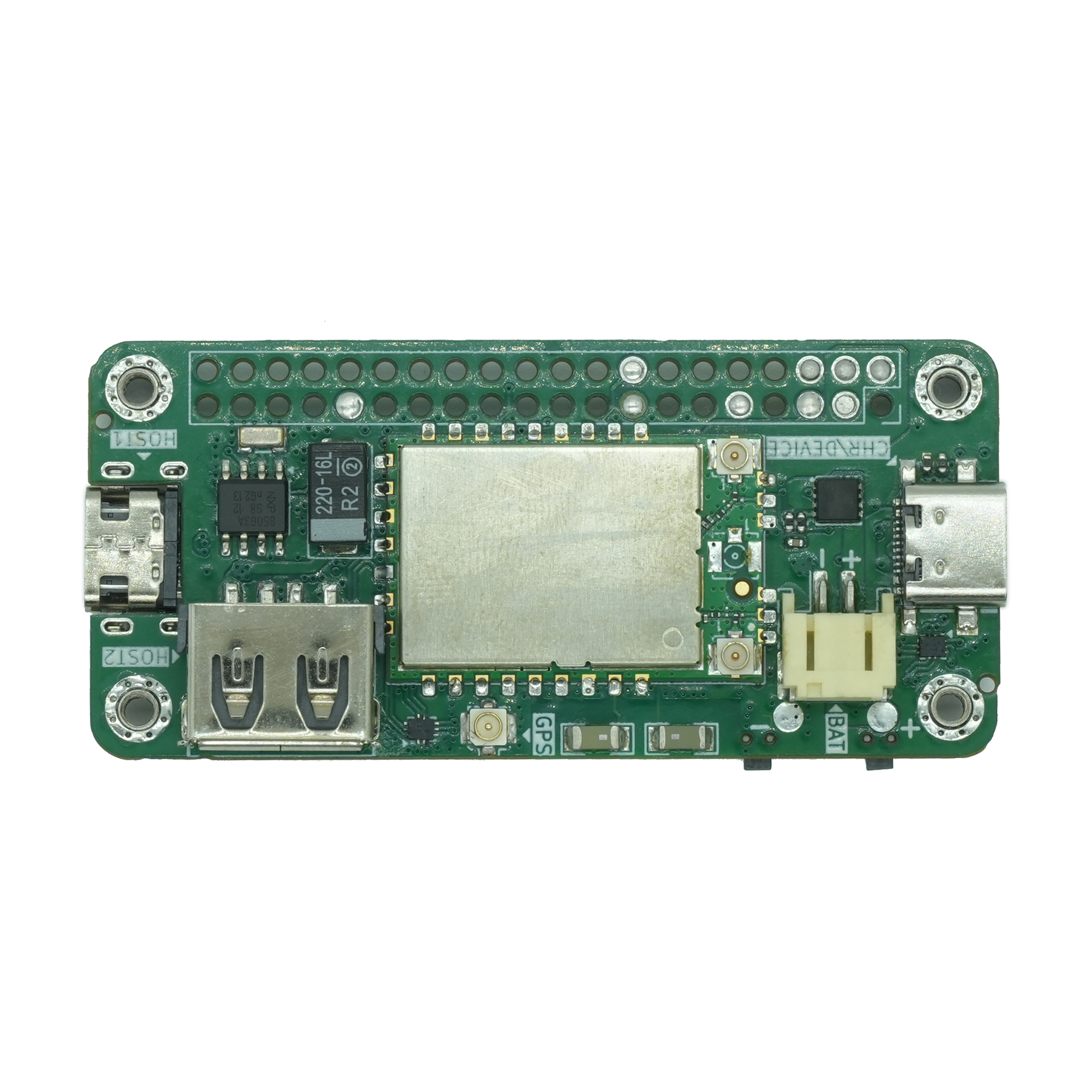

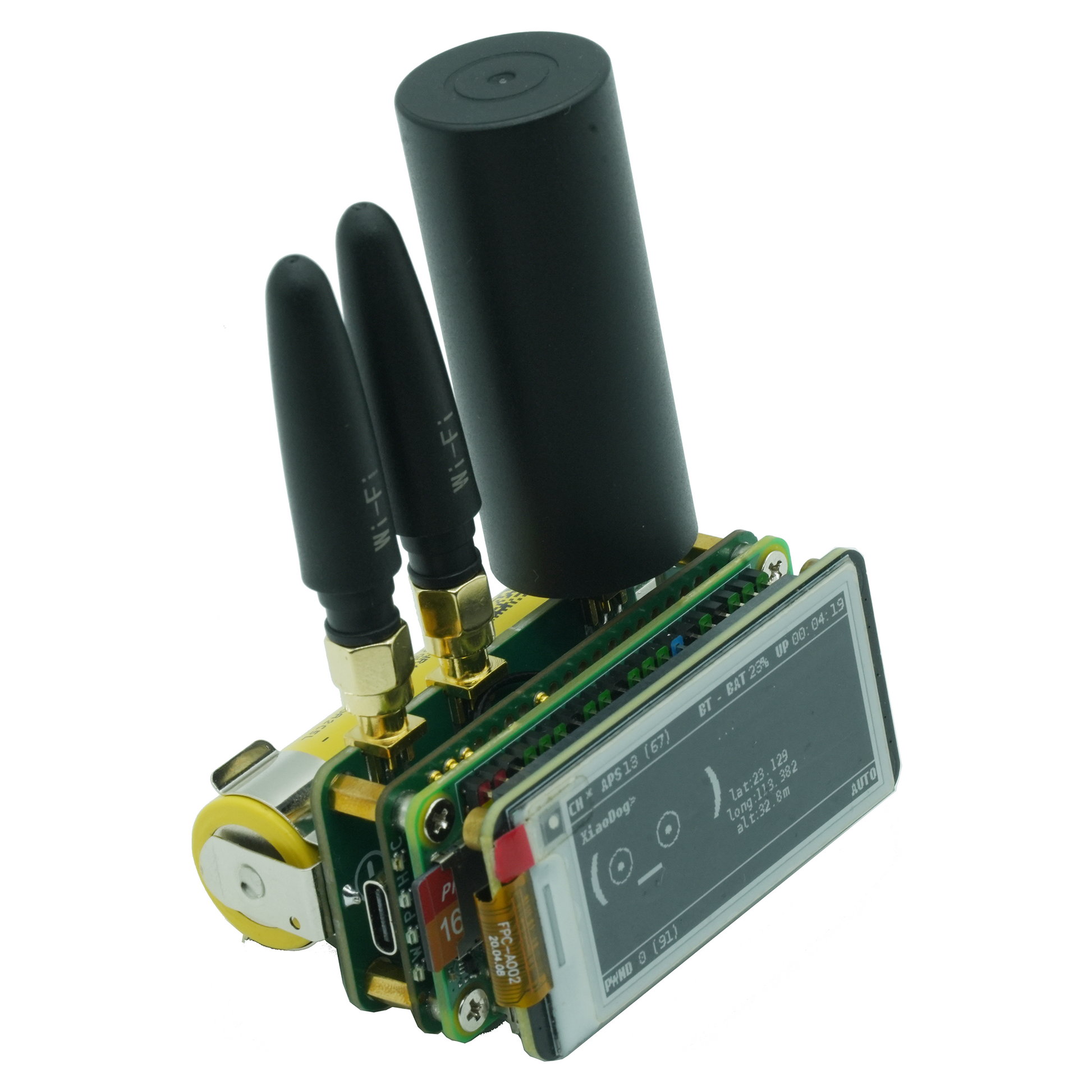

The Pwnagotchi Hat is an all-in-one expansion board designed for the Raspberry Pi Zero, purpose-built for Pwnagotchi deployments and wardriving. It integrates a UPS, dual-band AC WiFi with monitor mode and packet injection, GPS with PPS support, a USB hub, and a hardware RTC — all in a single stackable board.
An optional 18650 battery and antenna backplate makes field deployment effortless, turning your Pi Zero into a fully self-contained wireless intelligence platform.
Key Features
UPS & Power Management
Charge + 5V output for Pi Zero
- Simultaneous charging and 5V output to Pi Zero
- JST 2.0 connector for LiPo / Li-ion polymer battery
- 18650 battery support via optional backplate (up to 4 hours runtime)
- Battery status readable via I²C
- Dedicated Pwnagotchi plugin provided
- Stable power for uninterrupted field operation

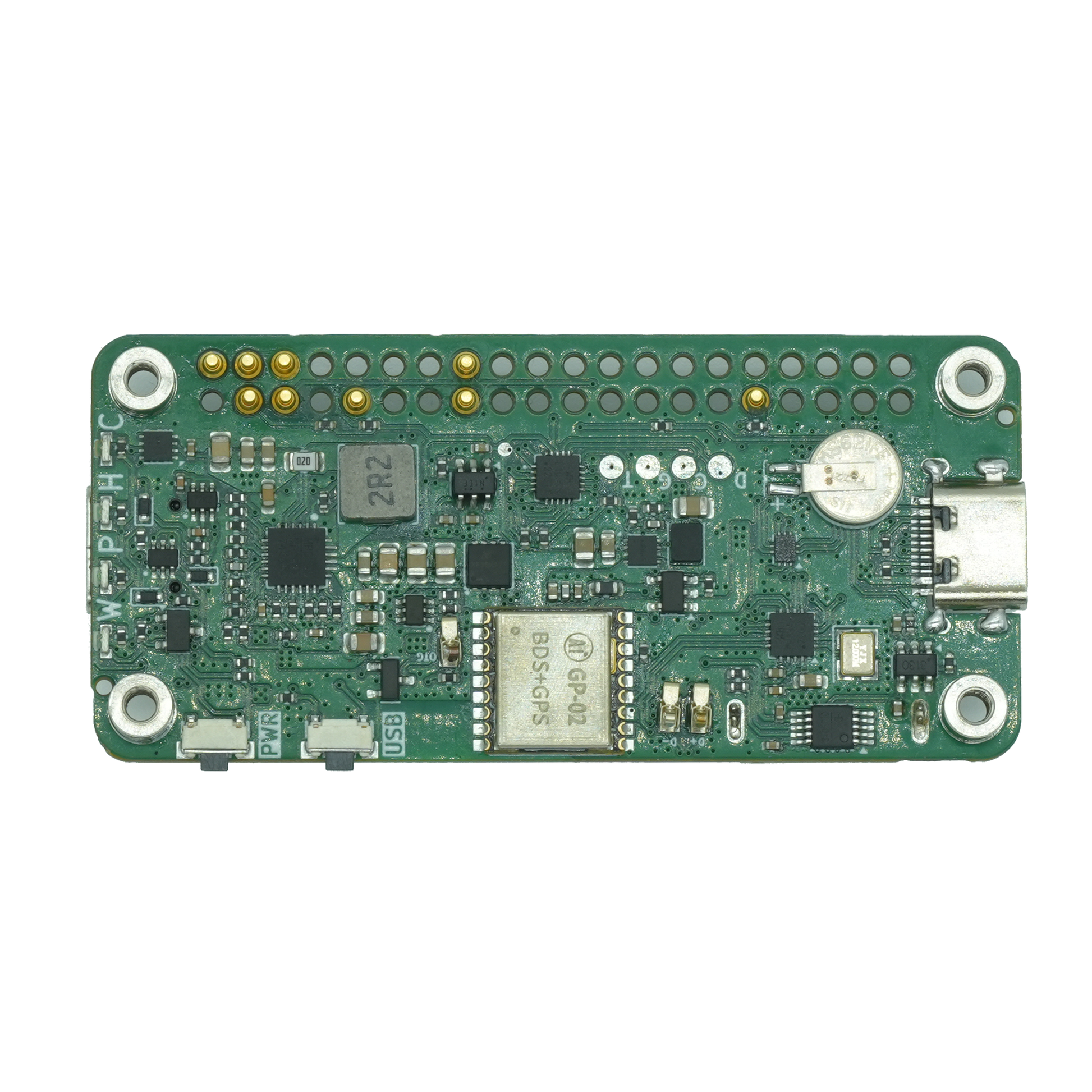

GPS with PPS
GPS + BeiDou or GPS + GLONASS
- Dual-constellation: GPS + BeiDou or GPS + GLONASS
- Active GPS antenna support
- PPS (Pulse Per Second) output for precision timing
- Connected via USB Serial — Pi Zero UART stays free
- Wardriving location logging out of the box
AC Dual-Band WiFi
Same chip as ALFA AWUS036ACM
- MediaTek MT7612U chipset (ALFA AWUS036ACM equivalent)
- Monitor mode and packet injection supported
- Dual-band: 2.4 GHz + 5 GHz 802.11ac
- Bluetooth with onboard antenna
- Ideal for Pwnagotchi AI training and wardriving
4-Port USB Hub
GPS + WiFi internal · 2 ports exposed
- 4-port internal USB hub
- GPS and AC WiFi each occupy one internal port
- Remaining two ports exposed as USB-A and USB-C
- Expand with additional USB peripherals
RTC with Rechargeable Battery
Timekeeping + scheduled tasks
- Onboard rechargeable RTC battery and charging circuit
- Accurate timekeeping without network sync
- Supports scheduled tasks: timed power on/off
- Ideal for automated field deployments

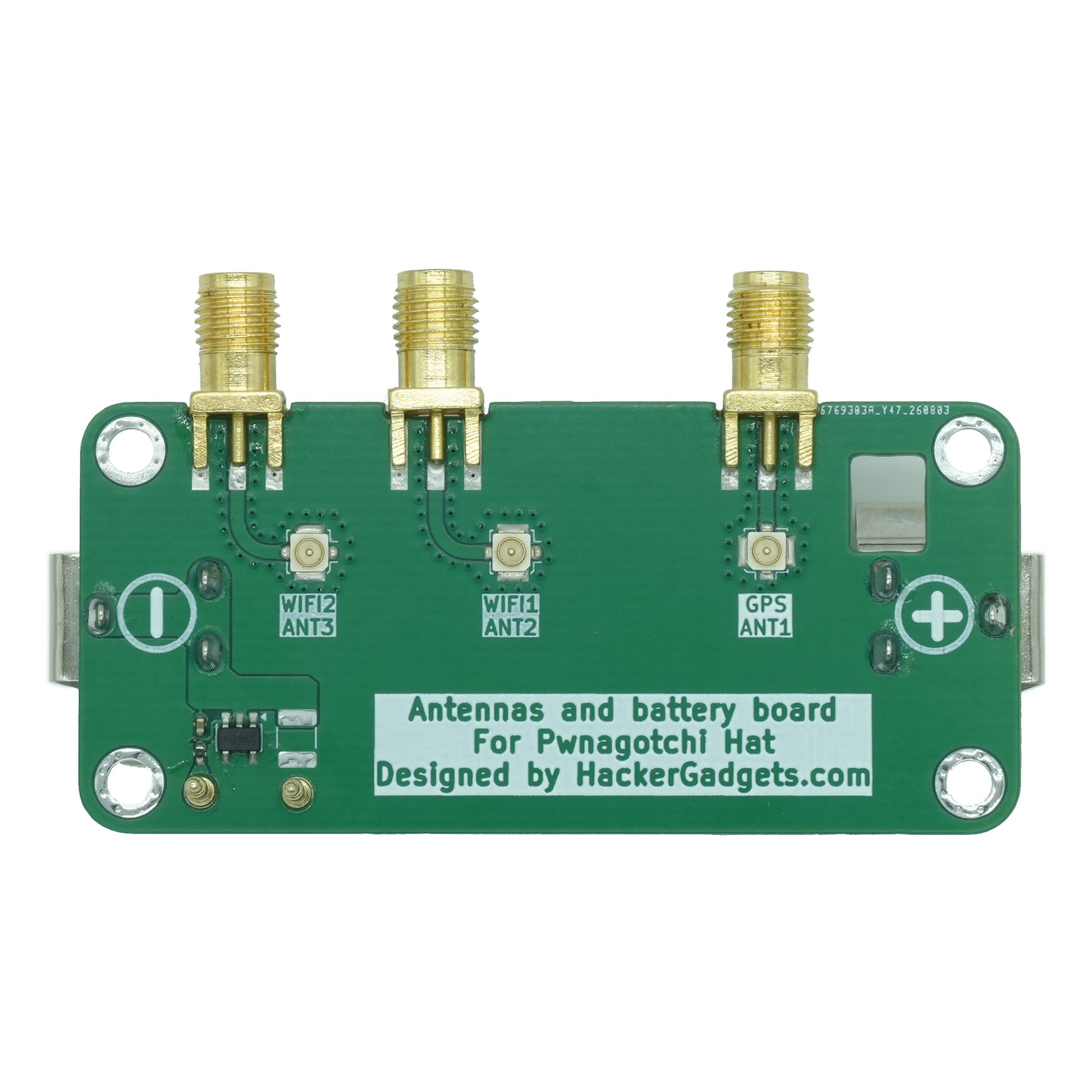

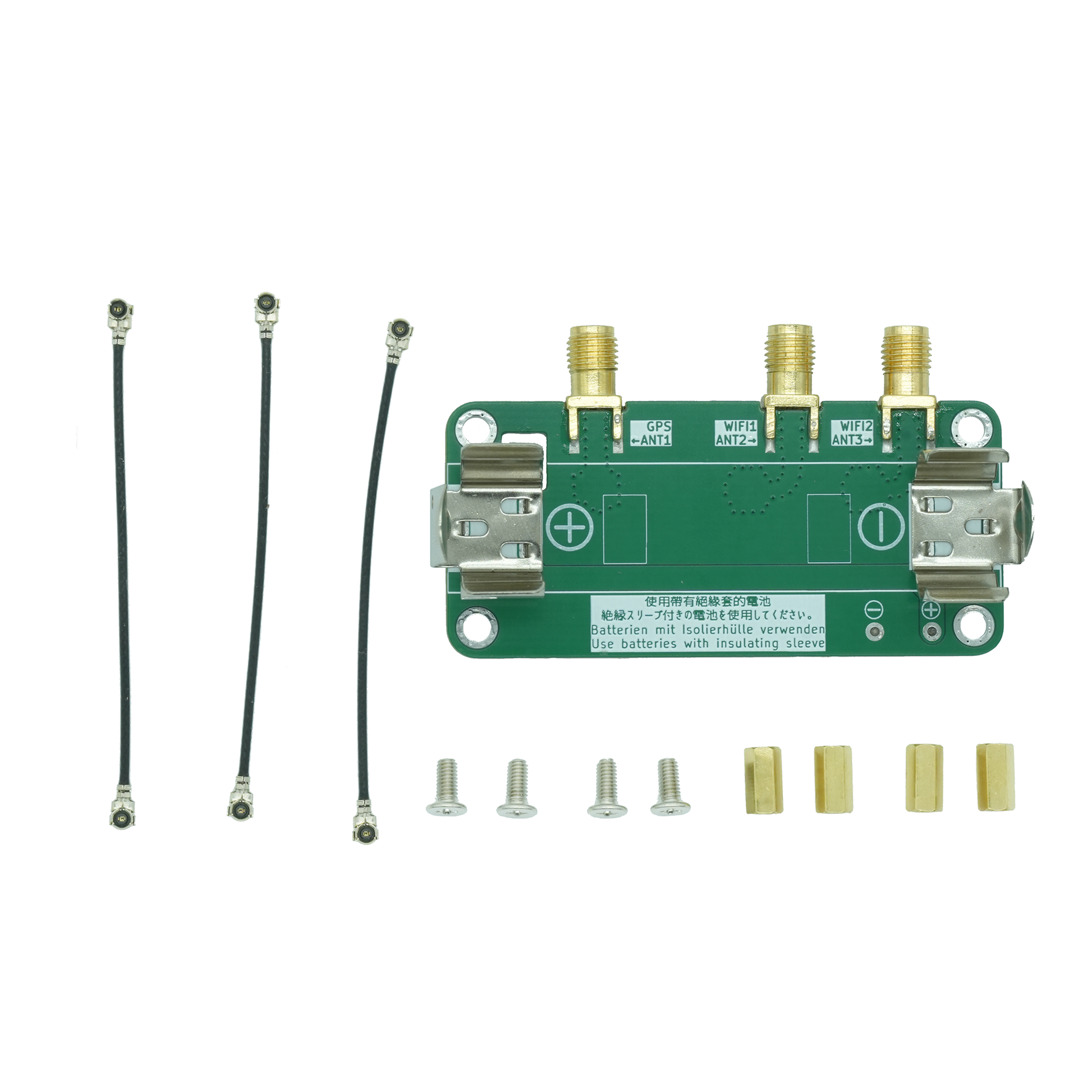

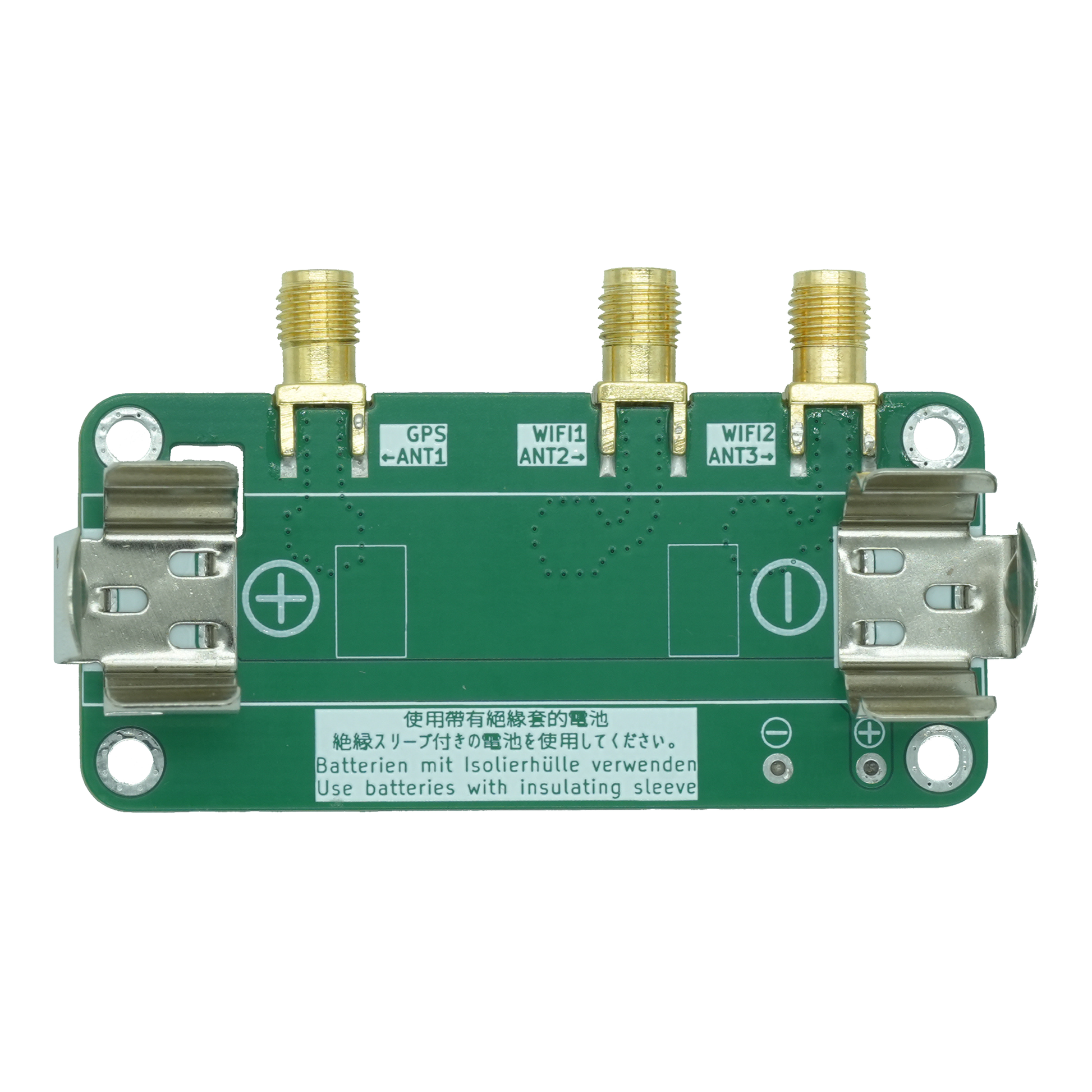

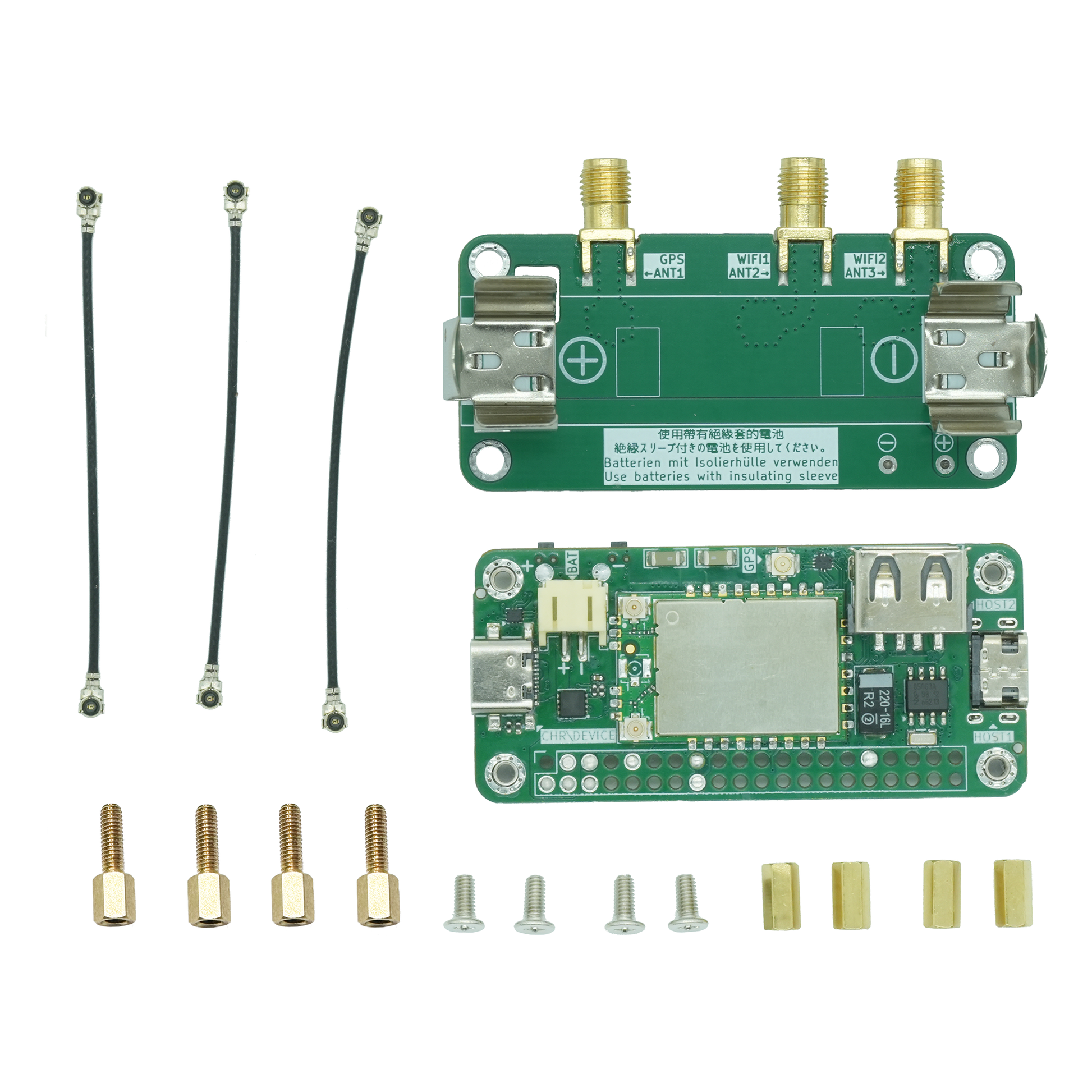

18650 Battery & Antenna Backplate
Stackable field deployment
- Dedicated backplate for 18650 battery mounting
- Antenna mounting points for external antennas
- Stackable design — attaches directly beneath the Hat
- Enables fully self-contained portable deployment
ℹ️ GPS is connected via USB Serial, so the Pi Zero's hardware UART remains available for serial console access — no conflicts with your existing setup.
Use Cases

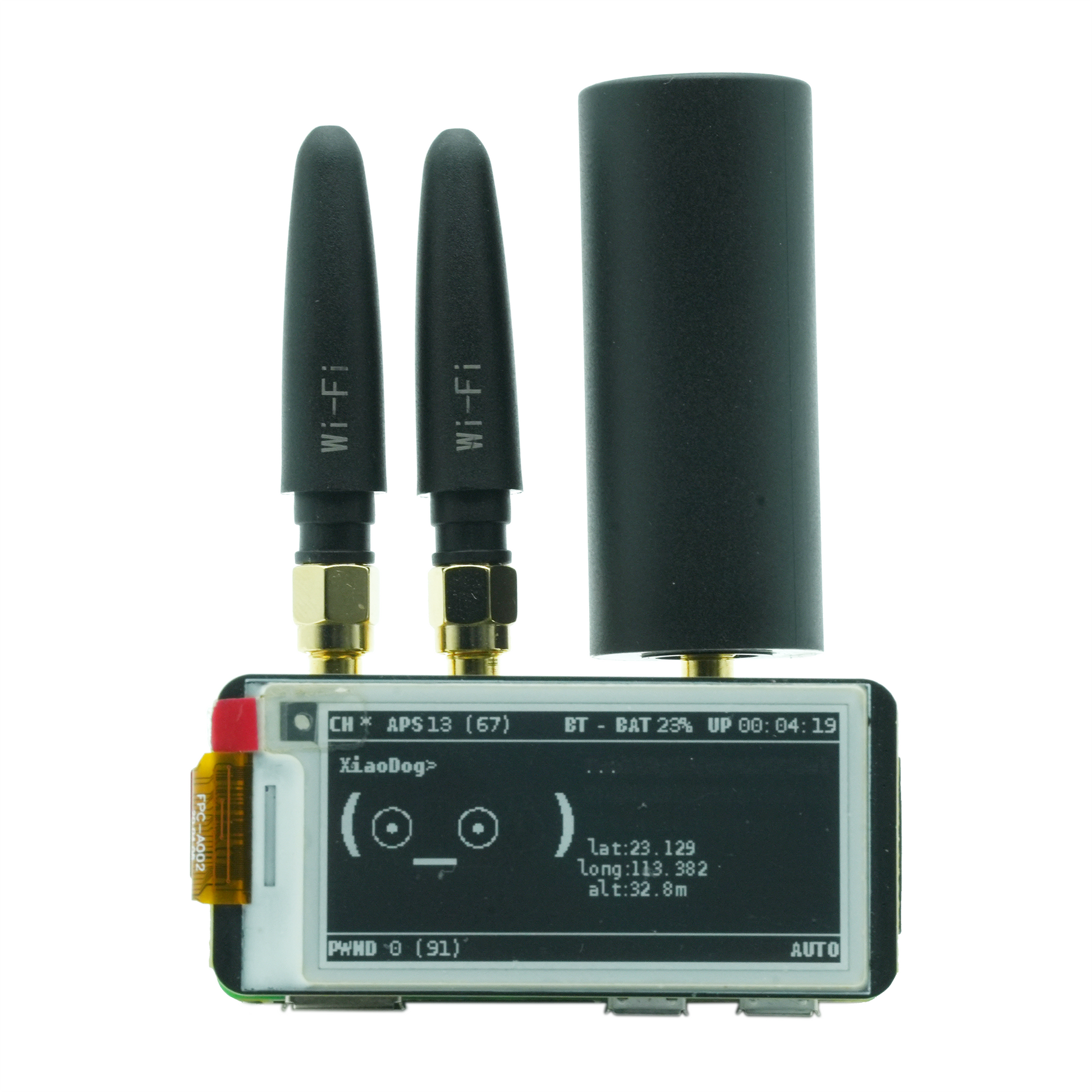

Pwnagotchi
AI-driven WPA handshake capture
- Full hardware support for Pwnagotchi out of the box
- UPS plugin reports battery to Pwnagotchi UI
- AC WiFi for faster handshake capture across 2.4 & 5 GHz
- RTC keeps time synced between deployments
- GPS logs capture locations automatically
Wardriving
GPS-tagged WiFi mapping
- Dual-band AC WiFi scans 2.4 GHz & 5 GHz networks
- GPS logs precise coordinates for every access point
- PPS output enables high-accuracy time correlation
- Long battery life with 18650 backplate
- Runs headless and unattended in vehicles or bags
Specifications
| Compatible SBC | Raspberry Pi Zero / Zero W / Zero 2 W |
| WiFi Chipset | MediaTek MT7612U (same as ALFA AWUS036ACM) |
| WiFi Bands | 2.4 GHz + 5 GHz 802.11a/b/g/n/ac |
| WiFi Capabilities | Monitor mode, packet injection |
| Bluetooth | Onboard antenna |
| GPS Constellation | GPS + BeiDou or GPS + GLONASS |
| GPS Antenna | Active antenna supported |
| GPS PPS | Supported |
| GPS Interface | USB Serial (Pi Zero UART remains free) |
| UPS Output | 5V to Pi Zero, simultaneous charge + output |
| Battery Connection | JST 2.0 for LiPo / polymer battery, or 18650 via backplate |
| Battery Runtime | Up to 4 hours with 18650 battery |
| Battery Monitoring | I²C interface, Pwnagotchi plugin included |
| USB Hub | 4-port; GPS + WiFi internal; USB-A + USB-C exposed |
| RTC Battery | Onboard rechargeable cell with charging circuit |
| RTC Functions | Timekeeping, scheduled power on/off |
| Backplate (optional) | 18650 battery mount + antenna mount, stackable |
📡 WiFi Note: The AC WiFi module uses the MT7612U chipset, the same chip found in the ALFA AWUS036ACM adapter — a trusted choice in the security research community for its reliable monitor mode and injection support under Linux.
The Pwnagotchi Hat brings together everything you need for serious wireless field work — UPS power management, precision GPS, dual-band AC WiFi with monitor mode and injection, a 4-port USB hub, and a hardware RTC with scheduled wake — all on a single board that stacks directly onto a Raspberry Pi Zero. Pair it with the 18650 backplate and you have a fully self-contained, pocket-deployable platform for Pwnagotchi or wardriving, ready to run anywhere.
