Product Description:
Introducing the ultimate combination for your Raspberry Pi 5 – the NVMe SSD and LTE/5G Dual Hat. Engineered to deliver seamless connectivity and enhanced functionality, this innovative Hat transforms your Raspberry Pi experience.
Features:
-
Dual Connectivity: Support for an NVMe PCIe SSD and an LTE/5G module allows for versatile usage and expanded capabilities.
-
SSD Compatibility: Accommodating SSD sizes from 2230 to 2280, with the SSD mounted on the underside, ensuring a compact and efficient design.
-

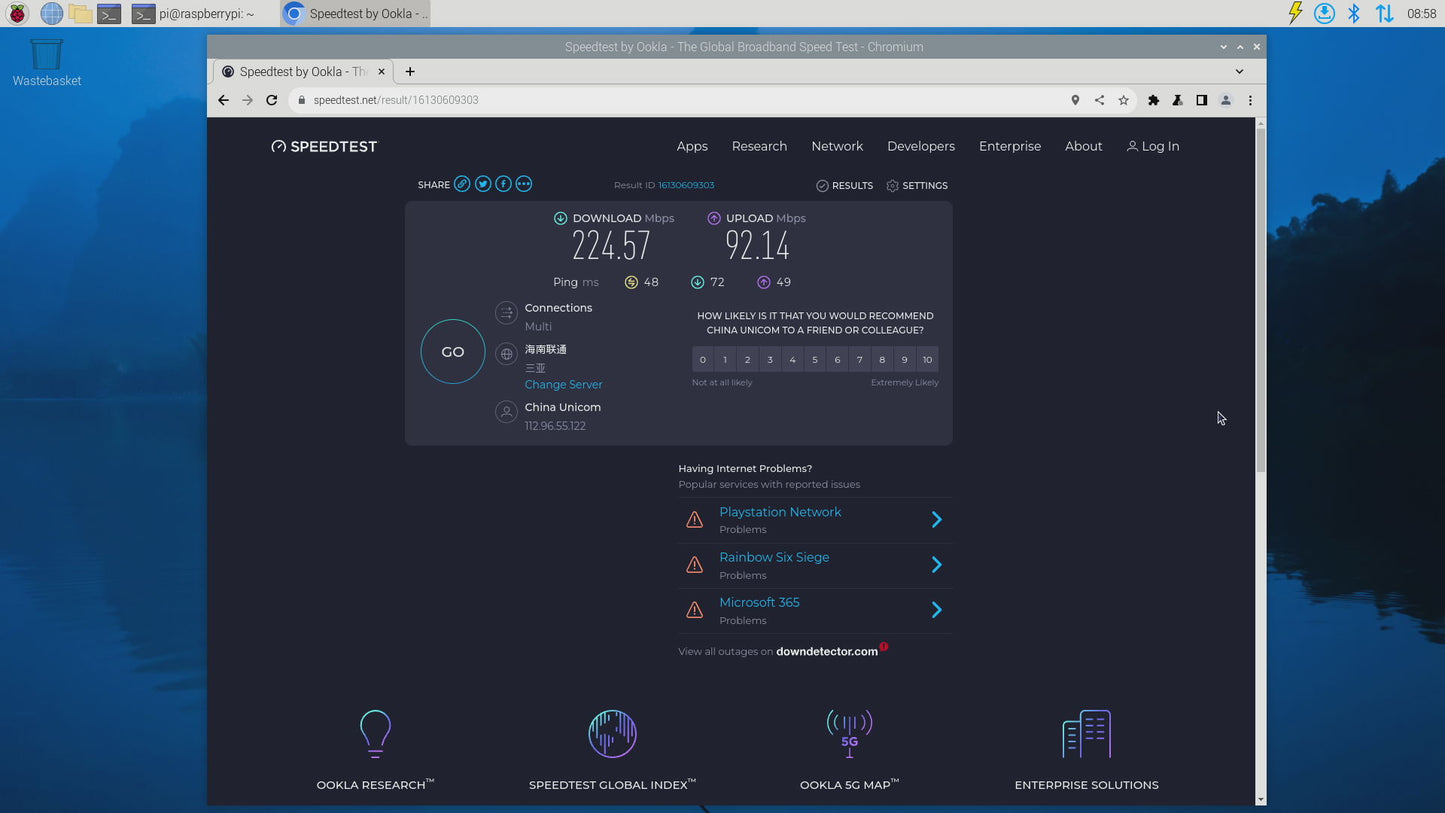

LTE/5G Module Integration: Compatible with 3042 or 3050 LTE/5G modules, conveniently installed on the top side. The LTE/5G module connects to the Raspberry Pi 5's USB 3.0 port via a USB-A to USB-C adapter, eliminating the need for bulky data cables. Additionally, with a nano SIM card slot and power supply switch between the Raspberry Pi GPIO/PCIe FPC connector and USB-C port, the LTE/5G module can operate independently from the Raspberry Pi, enabling usage with other devices such as PCs and laptops. Onboard SMA antenna connectors allow direct connection to SMA interface antennas.
-
Official Design Specification FPC Cable: Utilizing official design specification FPC cables, ensuring compliance with the 90-ohm impedance requirement for operation at PCIe Gen3 speeds. The cables feature a relative-side-contact design, preventing the risk of short circuits that may occur with same-side-contact PCIe FFC insertion errors.
-
Power Supply Compliance: Power supply meets the 3A requirement of NVMe standards, ensuring reliable and consistent performance.
What's includes:
- NVMe and LTE/5G Base PCB with two M.2 Slots (M-Key for SSDs, B-Key for LTE/5G modules)
- Flat Flex Cable for PCIe connection
- 2x M2 standoff screw nuts and M2 screws for SSD and LTE/5G module mounting
- M1.6 screw nut for 2280 size SSD mounting
- 4x 22mm M2.5 standoffs
- 8x 8mm M2.5 screws
- 4x M2.5 standoff screw nuts
- 4x 5cm long IPEX UFL connector cables for connecting the LTE/5G module to the onboard SMA connectors.
- USB 3.0 Type-A plug to Type-C plug adapter
Note: SSDs, Antennas, 5G module, and Active cooler shown in the photos are not included.
Enhance your Raspberry Pi 5 setup with the NVMe SSD and LTE/5G Dual Hat – the perfect connectivity, versatility, and performance combination. Experience seamless integration and unlock a world of possibilities for your projects and applications.
