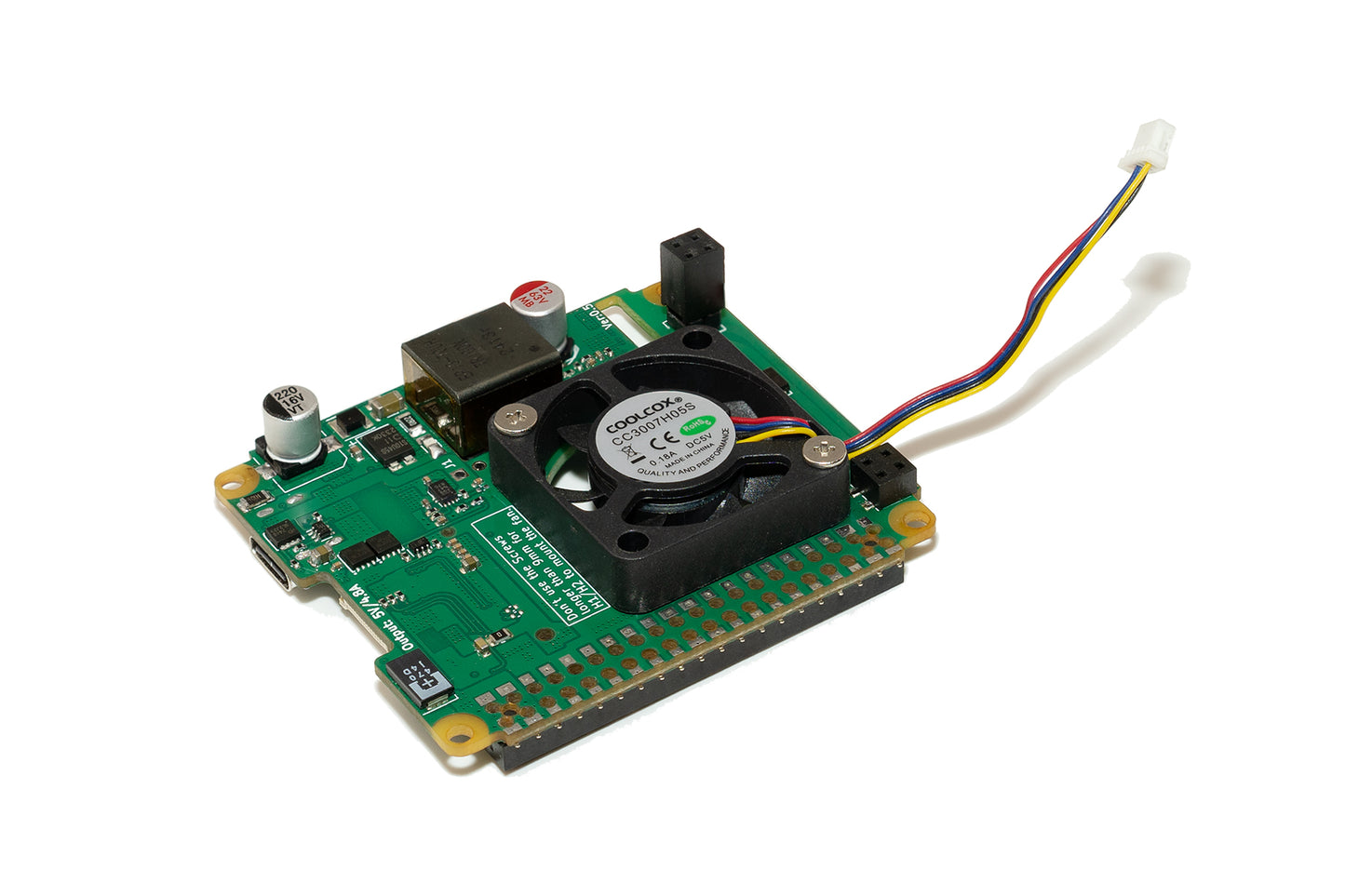

Enhance the power and cooling capabilities of your Raspberry Pi 5 with this NVMe and PoE+ HAT! Specifically designed for the Raspberry Pi 5, this expansion module supports the 802.3af/at standard, ensuring your device receives reliable and stable power while also providing efficient cooling. Whether you’re running high-load computing tasks or setting up a personal server, this HAT offers the support your Raspberry Pi 5 needs.
Key Features
1. Reliable Power Solution
• PoE+ Support: Compliant with the 802.3af/at standard, providing stable power to your Raspberry Pi 5 through Ethernet, simplifying cabling, and eliminating the need for additional power adapters.
• High Power Output: Equipped with a switch mode power supply that delivers 5V/4.8A output, ensuring your device remains stable even under heavy loads.
• PD Trigger Circuit: Features an integrated PD trigger circuit that converts non-5V/5A USB PD power supplies into 5V/5A power, accommodating various power needs.
2. Optimized Cooling Design
• Official Case Compatibility: This HAT is designed to fit perfectly with the official Raspberry Pi 5 case, requiring no additional adjustments or modifications.
• Fan Mounting Support: Includes pre-cut openings and mounting holes for fans, allowing users to easily install cooling fans and further enhance the cooling performance, ensuring stability during extended operation.
3. Easy to Use
• Integrated Design: All components are integrated into a compact module, making installation straightforward and tool-free.
• Efficient and Safe: With a fully isolated power supply design, it provides efficient and safe power delivery, protecting your device from power fluctuations and extending its lifespan.
Instructions guide:
https://drive.google.com/file/
What's includes:
- NVME and PoE+ Hat
- Flat Flex Cable for PCIe connection
- M2 standoff screw nut and M2 screw for SSD mounting
- 4x 14mm M2.5 standoffs
- 8x 8mm M2.5 screws
- 4x M2.5 standoff screw nuts
- 2x 10mm M2.5 screws for fan mounting
- 1x 2x5 pins pin-header
Note: SSDs, official cases, fans, and Active cooler shown in the photos are not included.
